Dimensions
Introduction
We dare to be different and we would love to show you how so there is no confusion.

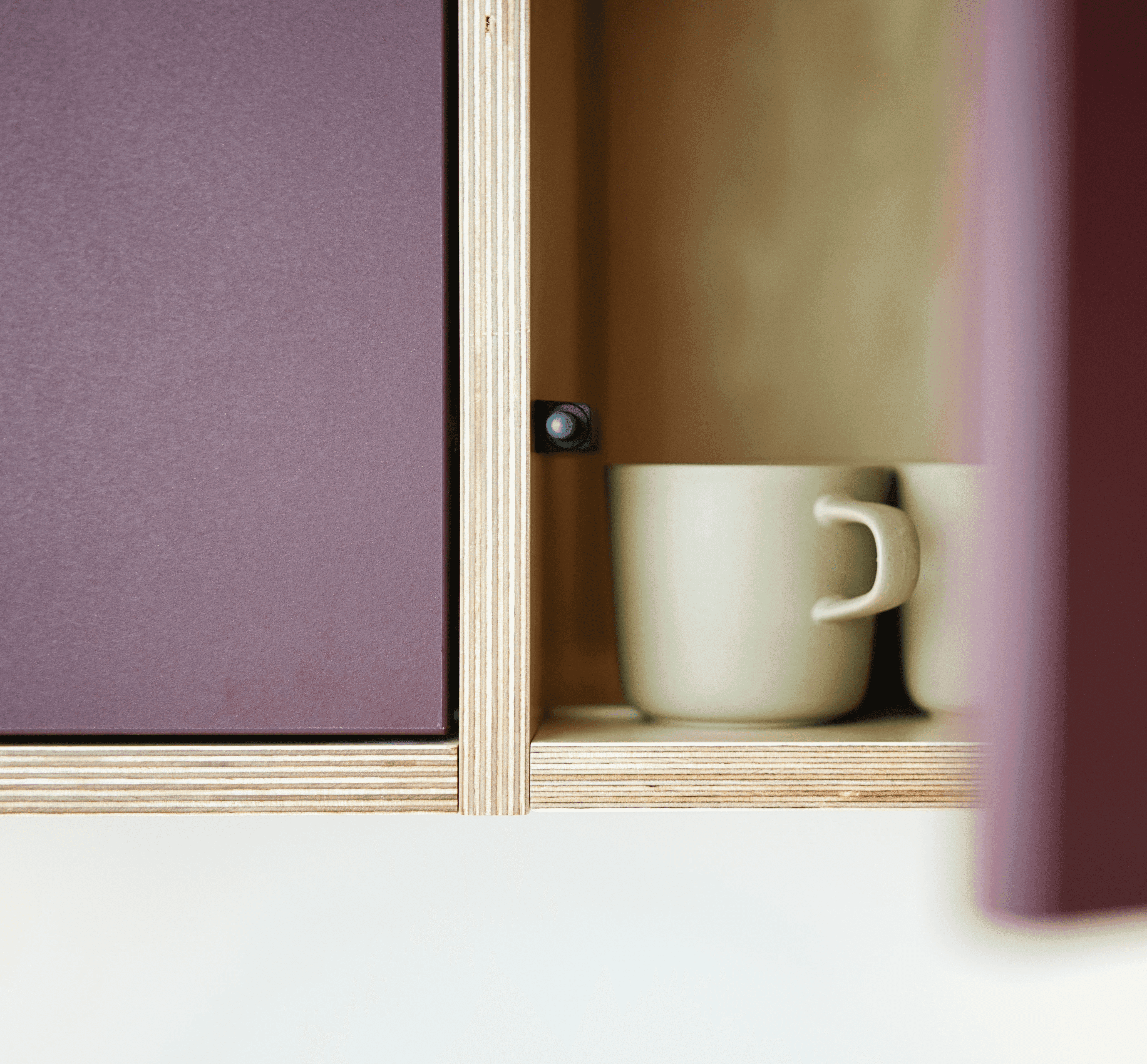

Shared walls
Our cabinets share walls and
the walls are 18 mm in thickness.
Our fronts are also 18 mm in thcikness.
Base cabinets
Depth: 600 mm.
Width options between shared walls:
800, 600, 564, 450 & 300 mm.
Height: 735 mm outer dimension,
699 mm inner dimension. 909 mm with our 174 mm plinth.
Top cabinets
Depth: 369 mm.
Width options between shared walls:
800, 600, 564, 450 & 300 mm.
Height: 735 mm outer dimension,
699 mm inner dimension.
Tall cabinets
Depth: 600 mm.
Width options between shared walls:
600, 564, 450 & 300 mm.
Height: 2034 mm outer dimension,
1998 mm inner dimension. 2208 mm with our 174 mm plinth
